Grohe Essence complete set wall-mounted toilet: with neeos pre-wall element and flush plate

Low maintenance properties and a high level of hygiene are the hallmarks of the Grohe Essence complete wall-mounted toilet set with neeos pre-wall element and flush plate.

Rimless and toilet seat with soft-closing mechanism

The toilet seat is cleverly designed, as it is equipped with a soft-closing mechanism that prevents it from slamming shut. It can also be removed quickly thanks to QuickRelease. The toilet is rimless, which means that the toilet will be reliably cleaned with every flush. You can select the flush water consumption of three or four and a half litres with the large or small flush button. The flush plate with two flush buttons is also a visual eye-catcher. What's more, you can easily convert the wall-mounted toilet into a shower toilet. The integrated cistern allows you to change the flush volume without tools, thereby saving water. A great addition to your bathroom - from Grohe and neeos!

Product features

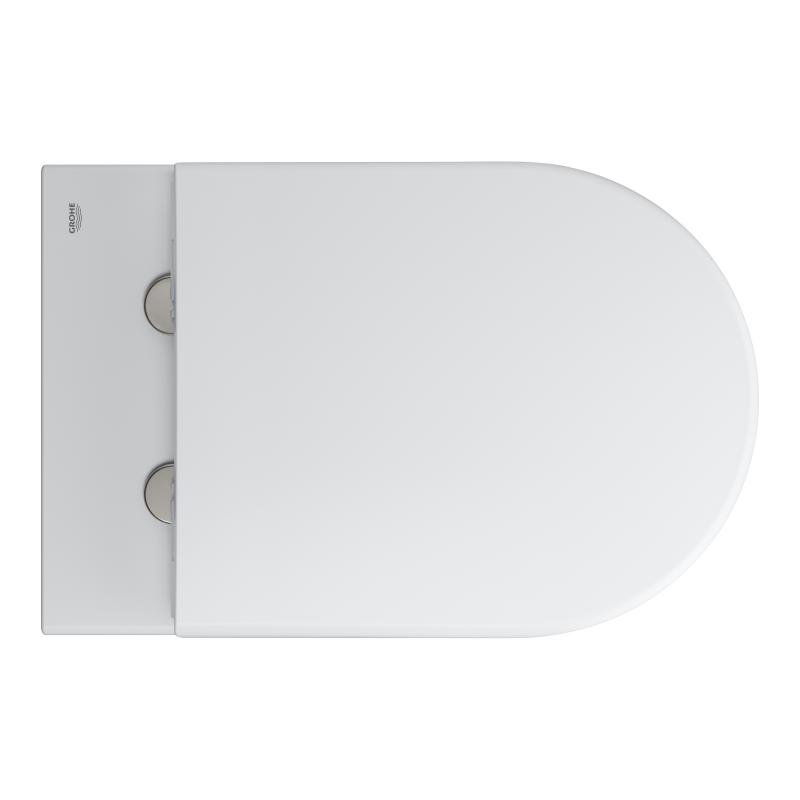

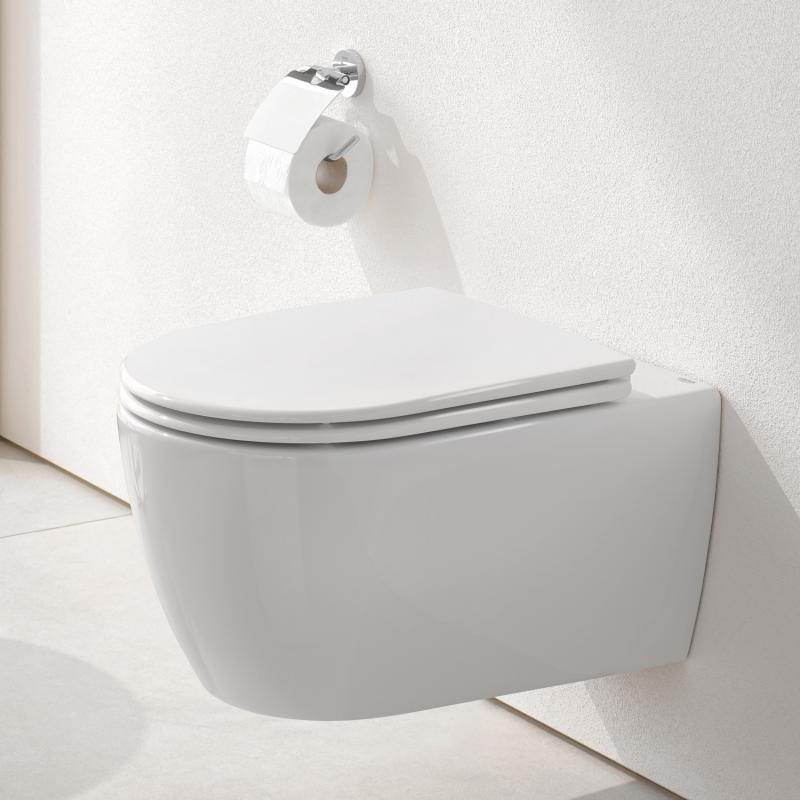

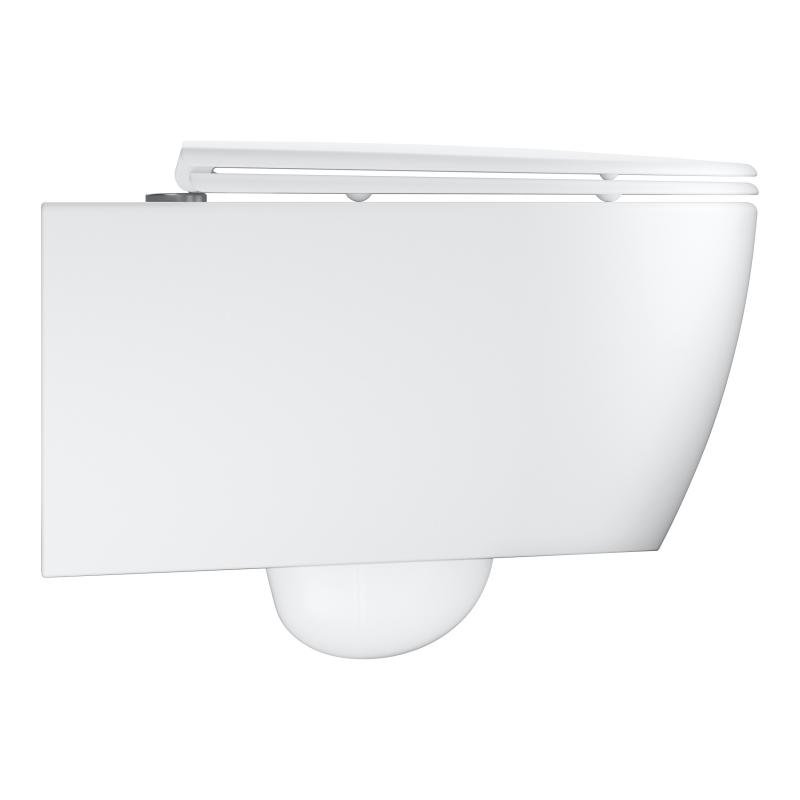

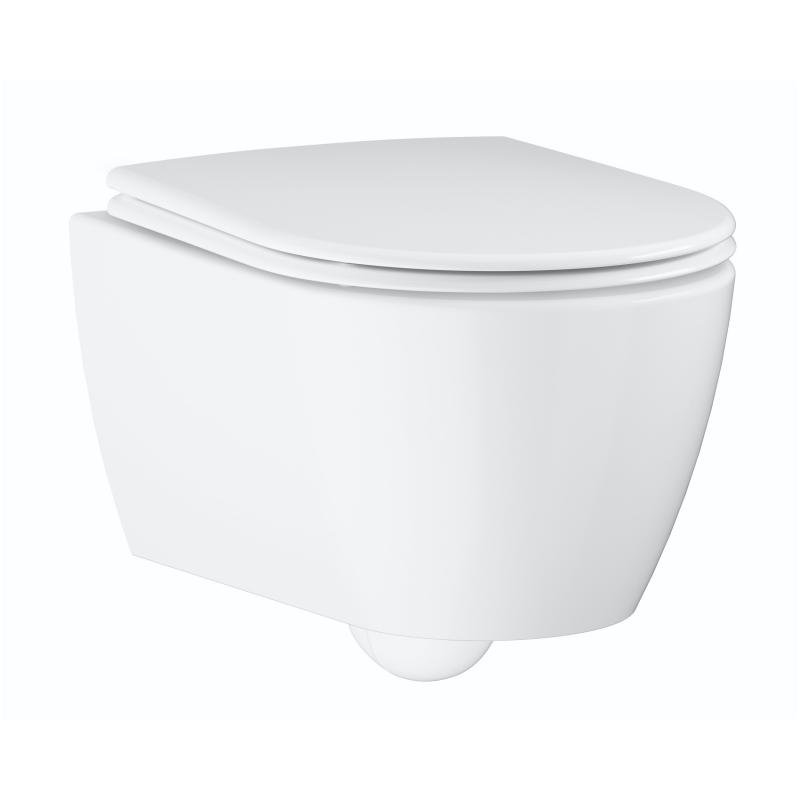

Grohe Essence Wall-Mounted, Washdown Toilet

• wall-mounted
• washdown model
• horizontal outlet
• rimless, therefore no hidden areas for deposits contamination (Rimless)
• flush volume: 3 litres with the small flush button, 4.5 litres with the large flush button
• includes set of fittings for concealed installation
• especially easy-to-clean and improved hygiene due to dirt-repellent, antibacterial surface (PureGuard)

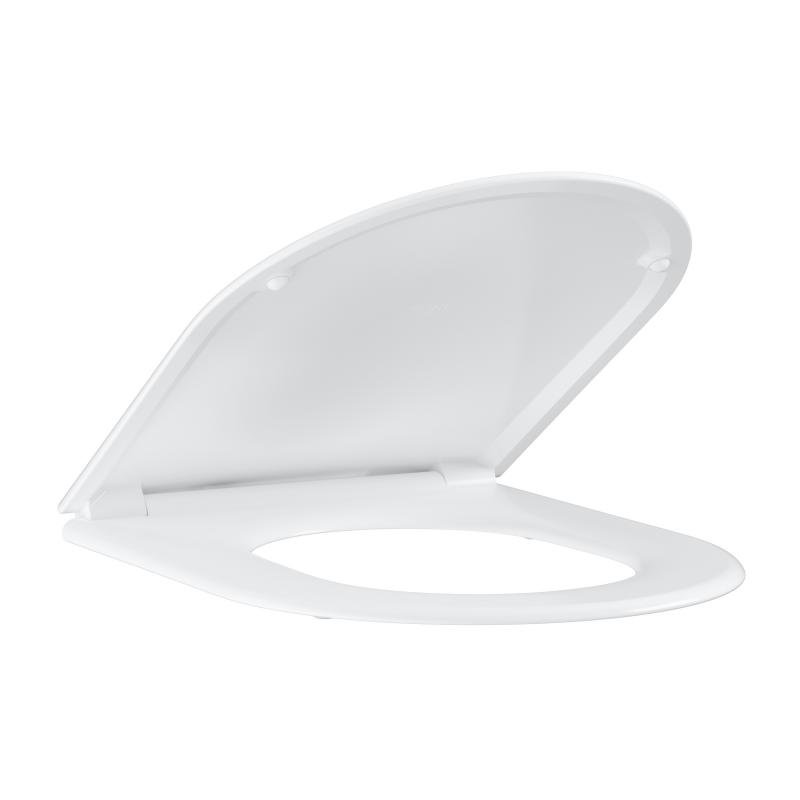

Grohe Essence Toilet Seat

• can be easily removed by hand for cleaning (QuickRelease)
• includes set of fittings
• automatic lowering to prevent loud slamming (Softclose)

neeos FP10 Flush Plate

• strong design: 8 mm slim panel with flat flush button for a linear, modern look
• smooth flush buttons for gentle triggering of the flush quantities
• for economical dual flush system
• selectable: operation from the front or top, depending on the chosen pre-wall element
• convenient: easy attachment of the front panel via spring system

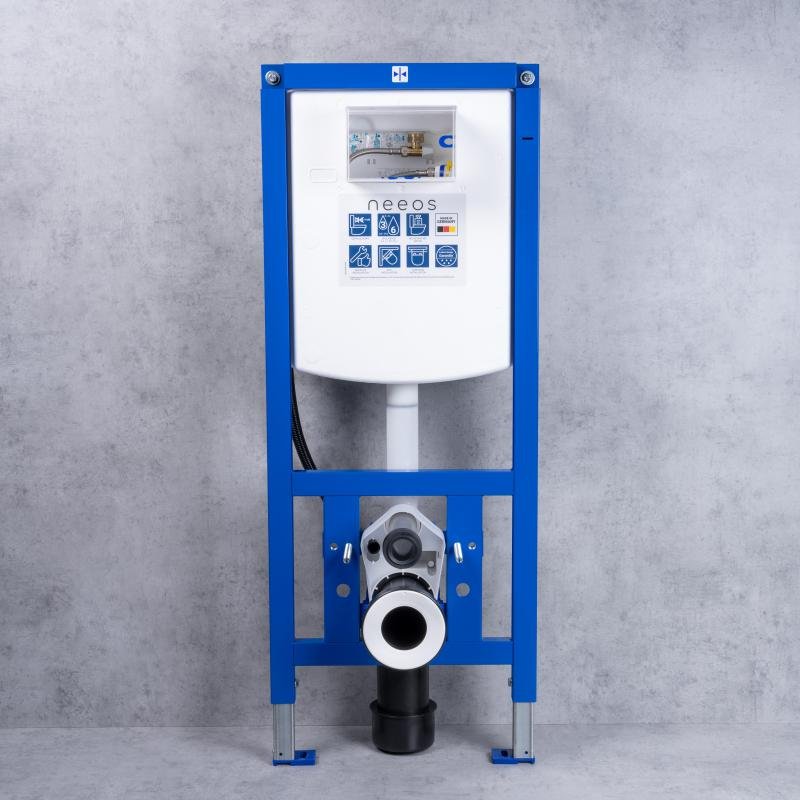

neeos VWTB Toilet Pre-Wall Element H: 112 cm

Your Benefits

• Made in Germany
• lifetime warranty - the conditions of the lifetime warranty can be found in Downloads
• 25 year spare parts guarantee

Installation

• versatile: freestanding installation possible on straight wall or across corner
• easy to install: desired height can be adjusted by self-locking feet for easy installation
• flexible: conduit for shower toilet connection possible at 3 positions
• future-oriented: easy conversion from wall-mounted toilet to shower toilet via maintenance opening

Mounting Frame

• safety: TÜV-tested load capacity up to 400 kg
• simple routing of the water connection thanks to pre-assembled conduit pipe
• self-supporting, powder-coated steel frame with 3x4 cm profile
• rotatable feet allow for a variety of installation options
• ideal: protective covers can be used as templates for marking out cut-outs in the wall covering
• bonus: spacious installation opening offers space for electronic shower toilet accessories, flush plates or other components
• with noise-insulated set of fittings for the toilet connection bend
• includes support for toilet ceramics with a small contact surface
• practical: clearly visible markings facilitate alignment during installation
• suitable for floor constructions from 0 to 20 cm

Integrated Cistern

• with economical dual flush system
• bonus: laser-etched serial number for simple spare parts procurement
• individual: save water by adjusting the flush volume without tools (small: 2 - 4 litres, large: 4.5 - 7.5 litres)
• cistern volume: 9 litres
• convenient: easy adjustment of the flushing flow restrictor via the maintenance opening of the cistern
• cistern insulated with EPS hard foam for noise insulation and humidity protection against condensation water
• tool-free hose screw connection from filling to angle valve
• particularly quiet filling valve: <13 dB, valve fittings group l
• water supply connection 1/2", with integrated angle valve
• intuitive: simple installation of the flush plate

Please note

• for a fresh scent in the bathroom, please combine neeos SP10 Box for toilet cleaning tabs. These can be found in Related Products
• for structure-borne noise decoupling, please order the neeos SP10 noise insulation set separately. This can be found in Accessories
• the conditions for the lifetime warranty can be found in Downloads.

Specifications

Item number:

3957100H1+16603WH#SET

Series:

Essence

Colour:

white

Material plate:

plastic

Colour plate:

white

Material toilet:

sanitary ceramic

Material toilet seat:

duroplast

Coating:

with PureGuard hygiene coating

Surface treatment:

yes

Length (cm):

54

Width (cm):

36

Mounting distance (cm):

18

Interior shape:

washdown toilets

Type of installation:

wall-mounted

Outlet:

horizontal

Suitable:

for concealed cisterns

Shape:

oval

Flushing rim:

without flushing rim

Toilet seat:

with toilet seat

Toilet seat hinges:

with soft-close & removable

Toilet mounting:

concealed

Version:

flush plate with rectangular button
